Modle E9

• ability:4000 boxes/hour
• Cardboard type:Corrugated cardboard/PP sheet

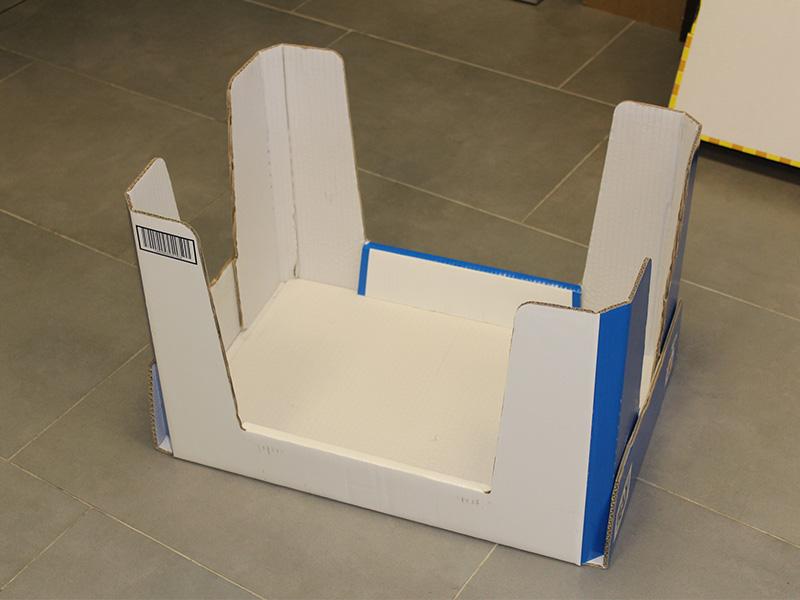

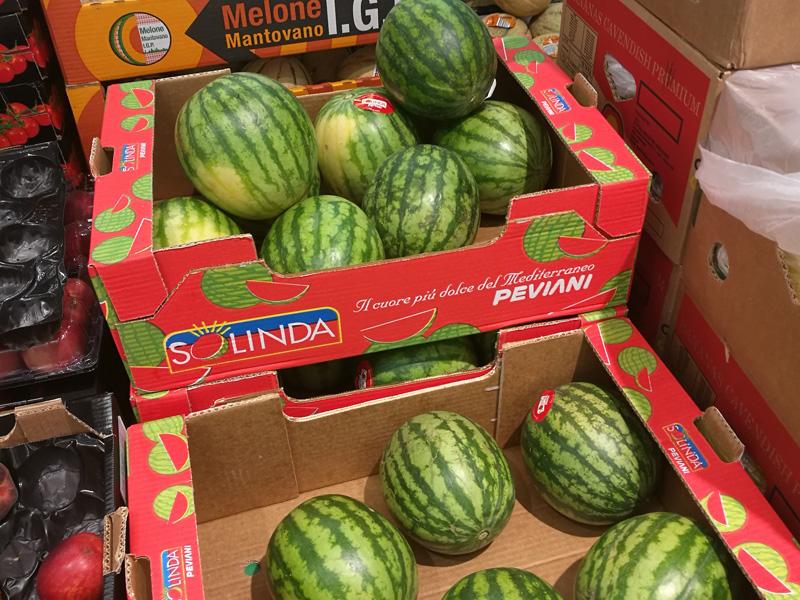

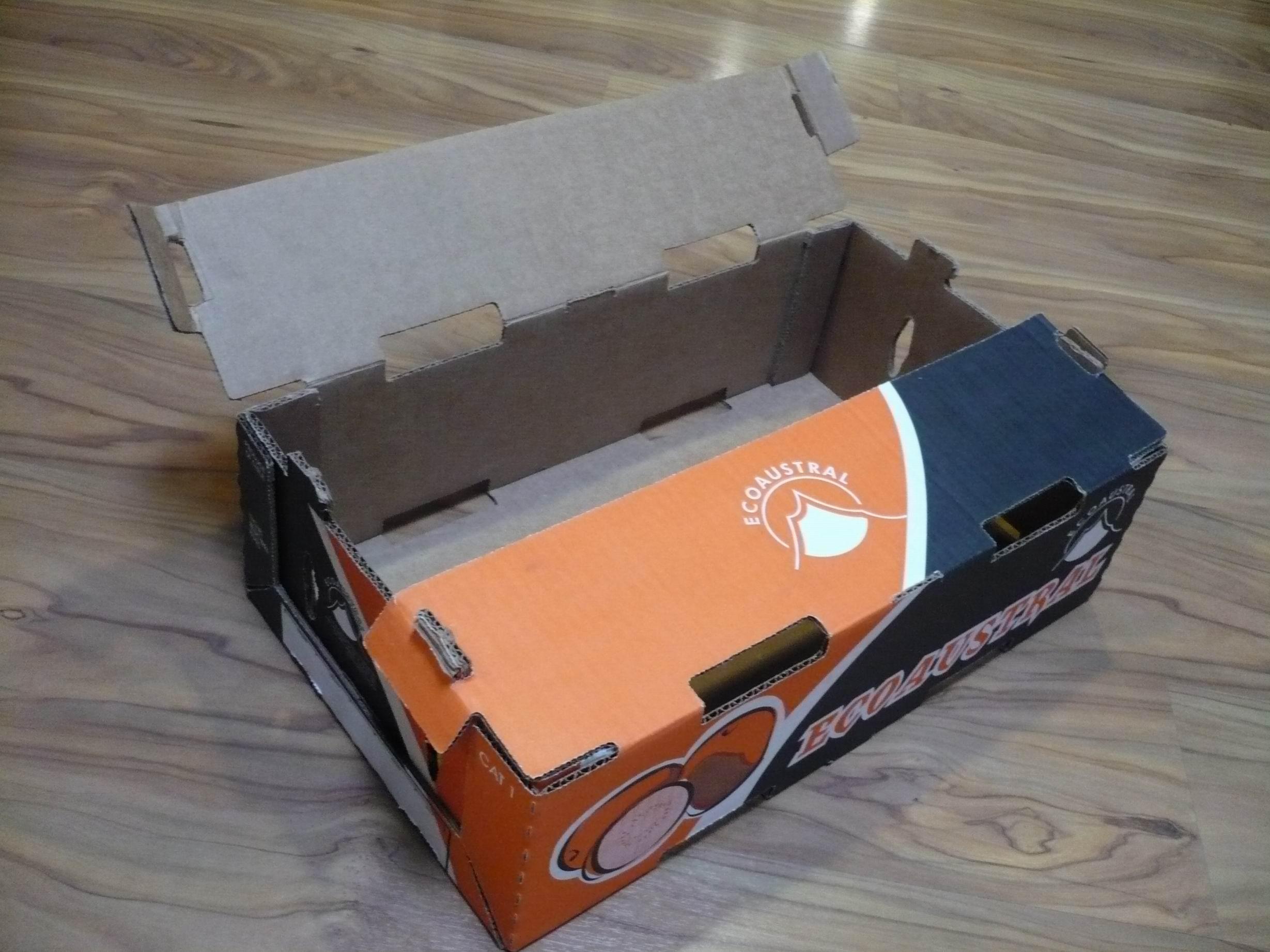

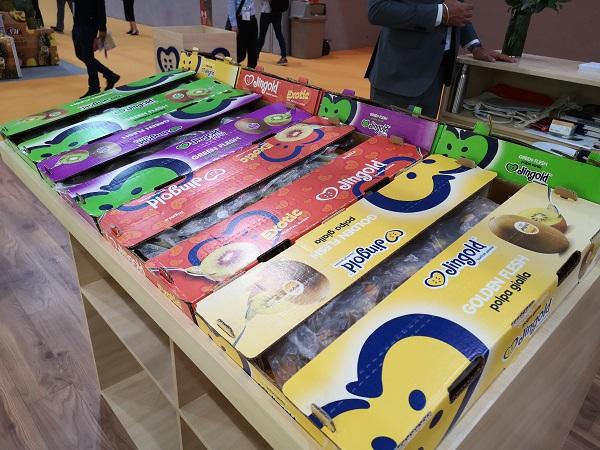

• Box type:: Platform, P-84, C1, citrus box, L angle, big ears, cylindrical
• Box size:Minimum 300x200x58mm to maximum 600x400x250mm
• delivery time:±45 days (depending on production schedule)

TECHNICAL DATA

Max Speed: 4000 Trays/hour.

Production running speed depends on box shapes, board dimensions and quality.

Electrical supply: 400 V – 50Hz 3 phases + N + G

Control voltage: 24 VDC

Working temperature: from 5°C to 35°C.

Installed power: 6KW

Air consumption: 19 Nl / cycles.

Weight: 1580 KG
